Linear Matrix LED Backlit Linkable Modules

LED Backlight Module Melbourne, Sydney and all across Australia

Adaptable, functional and creating stylish results, the LED Backlight Modules can illuminate any residential or commercial space.

Our modules can be used in a range of applications, including kitchen splashbacks, benches, ceilings and windows. They can highlight the features of any material such as glass, stone, acrylics and even onyx. Available in Melbourne, Sydney and across Australia, with a range of different colour renderings, LED Backlight Modules highlight and enhance the material they illuminate.

Our qualified and experienced staff work in Melbourne, Sydney and across Australia. They can create a customised solution for you. Contact us today to find out just how versatile these modules are.

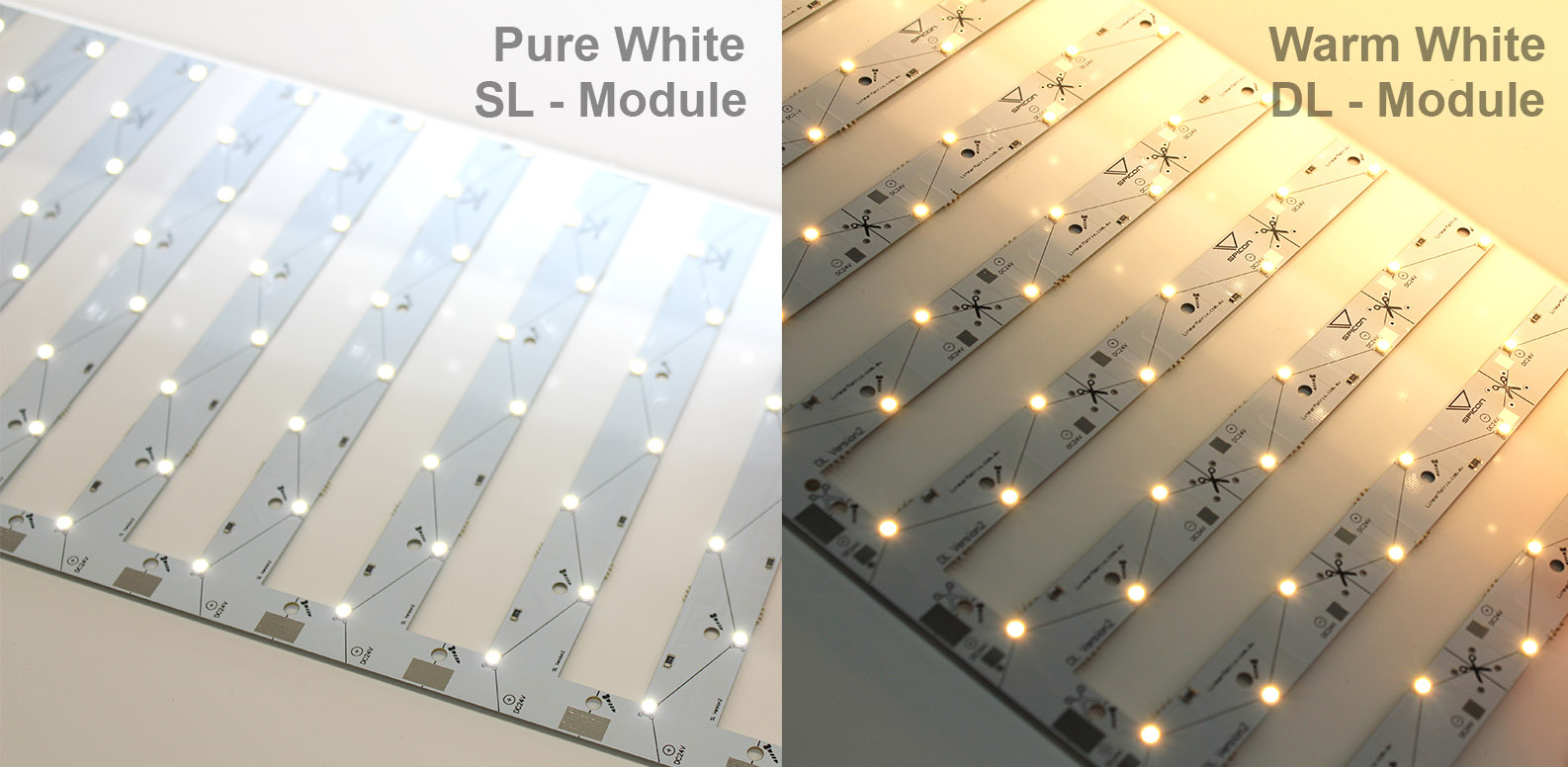

Single Colour White - Backlighting Module

(6000k Pure White or 3000k Warm White)

Available in pure white (6000K) and warm white (3000k), this LED module is perfect for consistently illuminating any space. The pure white offers a sharp, crisp light which preserves and enhances the colour of the material being backlit, while the warm white offers a softer, warmer, smoother light, that changes the mood of the room and the material being backlit.

Each panel is 600 x 580 x 2.5 mm and requires a recommended, minimum distance of 50 mm from the back of the diffuser or solid surface. Dimming controls can be integrated at an additional cost to allow for standalone or automated brightness control.

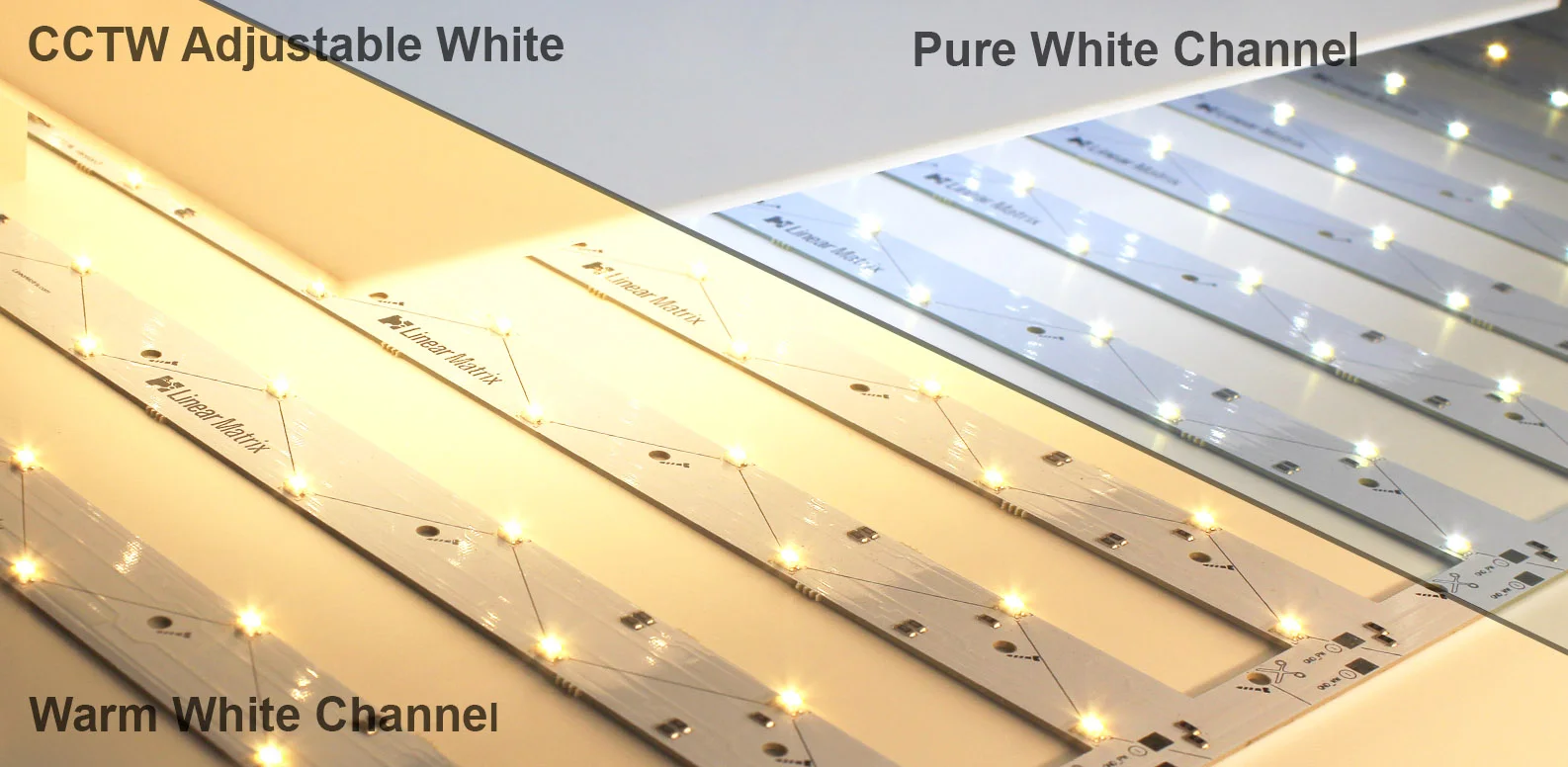

Circadian Rhythm - Tunable White - Backlighting Module

(6500k pure white to 2700k warm white)

This tuneable white LED module can cycle between soft warm white and sharp pure white light to mimic sunrise, midday and sunset. Providing an adaptable white light to any space, this tuneable white module offers white light from 2700k warm white to 6500k pure white. Automated or standalone colour and dimming controls need to be integrated into the system so end users can adjust the colour temperature and automate illumination according to a schedule.

Sizes of 600 x 580 x 2.5 mm and 270 x 24 x 2.5 mm are available. A recommended, minimum distance of 50 mm from the back of the diffuser or solid surface is required.

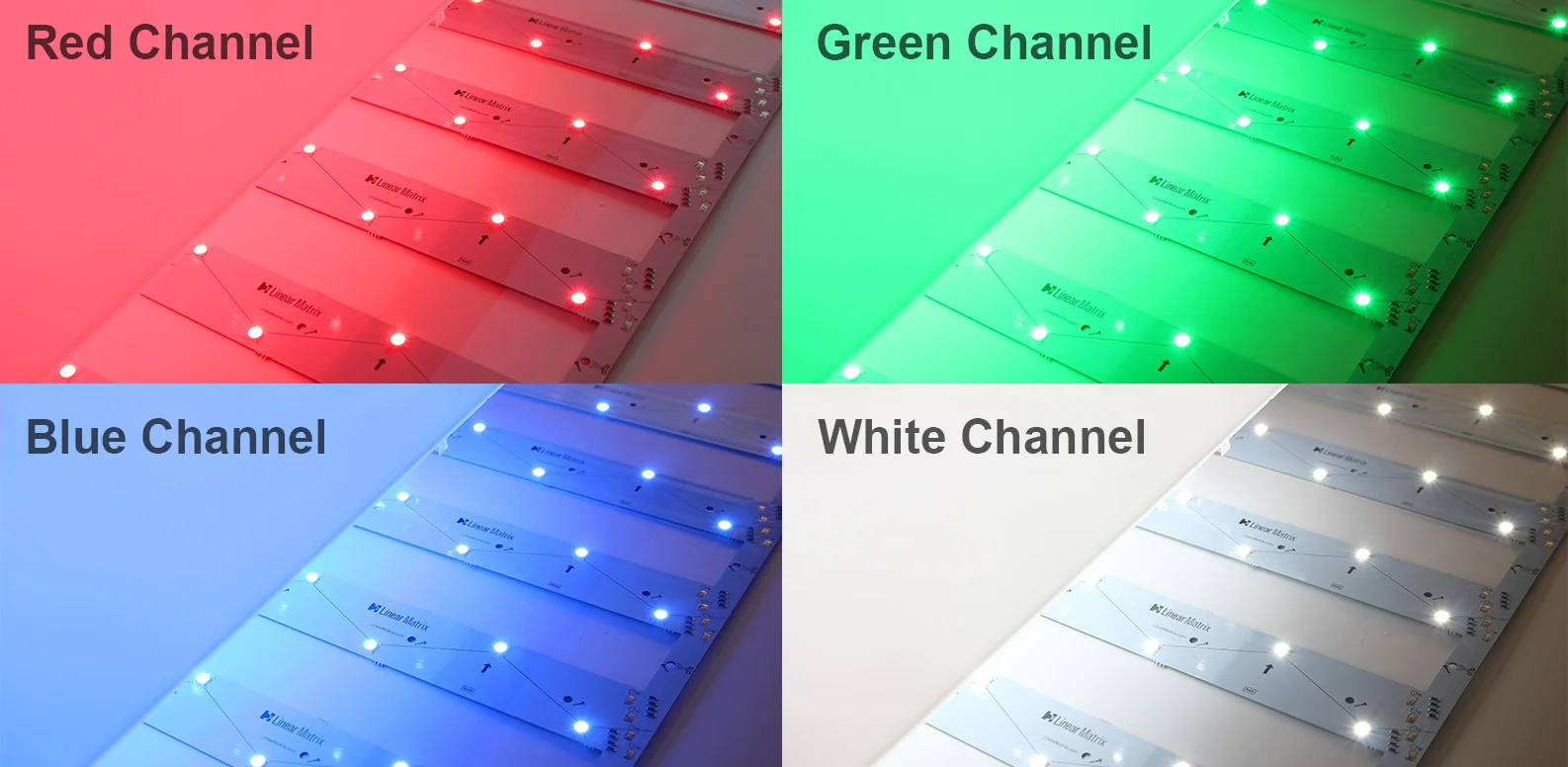

Full Colour - Backlighting Module

RGBW 4 Colour (Red/Blue/Green/White 6500k)

Red, blue, green and white are combined in this LED module to create any colour within the RGB spectrum, with the additional functionality of a pure white channel, for crisp, bright white light. This versatile panel can provide a range of colours that will complement any space. Colour & dimming controls are integrated into the system, so end users can adjust the colour output and brightness to create and change the mood of any space these panels are used in.

Sizes of 600 x 580 x 2.5 mm and 580 x 24 x 2.5 mm are available. A minimum of 75 mm from the back of the diffuser or solid surface is required.
